產品參數
1.鎮流器: 電子鎮流器
2.理論光源壽命：2000H
3.燈 泡: 380W
4.色溫：8000K
5.顏 色: 帶有13種顏色+白光，可半色彩虹效果, 也可雙向旋轉彩虹效果！
6.七彩:獨立七彩光束效果，清晰鮮艷！
7.圖 案: 帶有14個固定圖案片，自帶圖案抖動，輪播自轉！
8.棱 鏡: 雙棱鏡盤雙旋轉設計:四個棱鏡：6排棱鏡，8棱鏡，16棱鏡，8+8+8棱鏡，可上下疊加，可正反轉！
9.馬達電機: 高速運轉靜音電機！
10.散熱風機:自帶溫度感應器，燈體溫度升高，風機轉數加速運轉！反之降速運行！
11.控制主板:驅動芯片進口，自帶燈具故障檢測功能，風機閉環控制,配置RDM功能！
12.霧 化： 獨立霧化效果，也可以選擇七彩棱鏡效果
13.頻 閃: 式頻閃(0.3-13次/秒)
14.光 圈: 二級光束調節
15.顯示： 1.8寸液晶顯示,可倒轉180°顯示。
16.鏡 頭: 高精密大口徑組合光學鏡頭，直徑160CM，光束柱子粗，光束感強
17.調 焦: 0-100%機械調節（支持機械頻閃和可調速頻閃效果，支持頻閃宏功能。）
18.掃描范圍:X軸540度，Y軸270度（解析度8Bit/16Bit）
19.光束角度: 鏡頭組光學系統,電動對焦，平行光束角0-2°
20.馬達數量: XY均為靜音電機，共11個超靜音馬達，16Bit驅動 采用光電復位系統，當偶然發生誤動后，可自動檢索復位。 過熱保護。
21.通道數量: 16通道
22.控制方式: 國際標準DMX ， 主從模試 外殼:防火耐高溫材料！
23.其它功能: 遠程控制燈泡開關功能，顯示燈具、燈泡使用時間
24.控臺開泡數值:200~205 控臺滅泡數值:100~105 機械閉光時自動降低50%光源功率

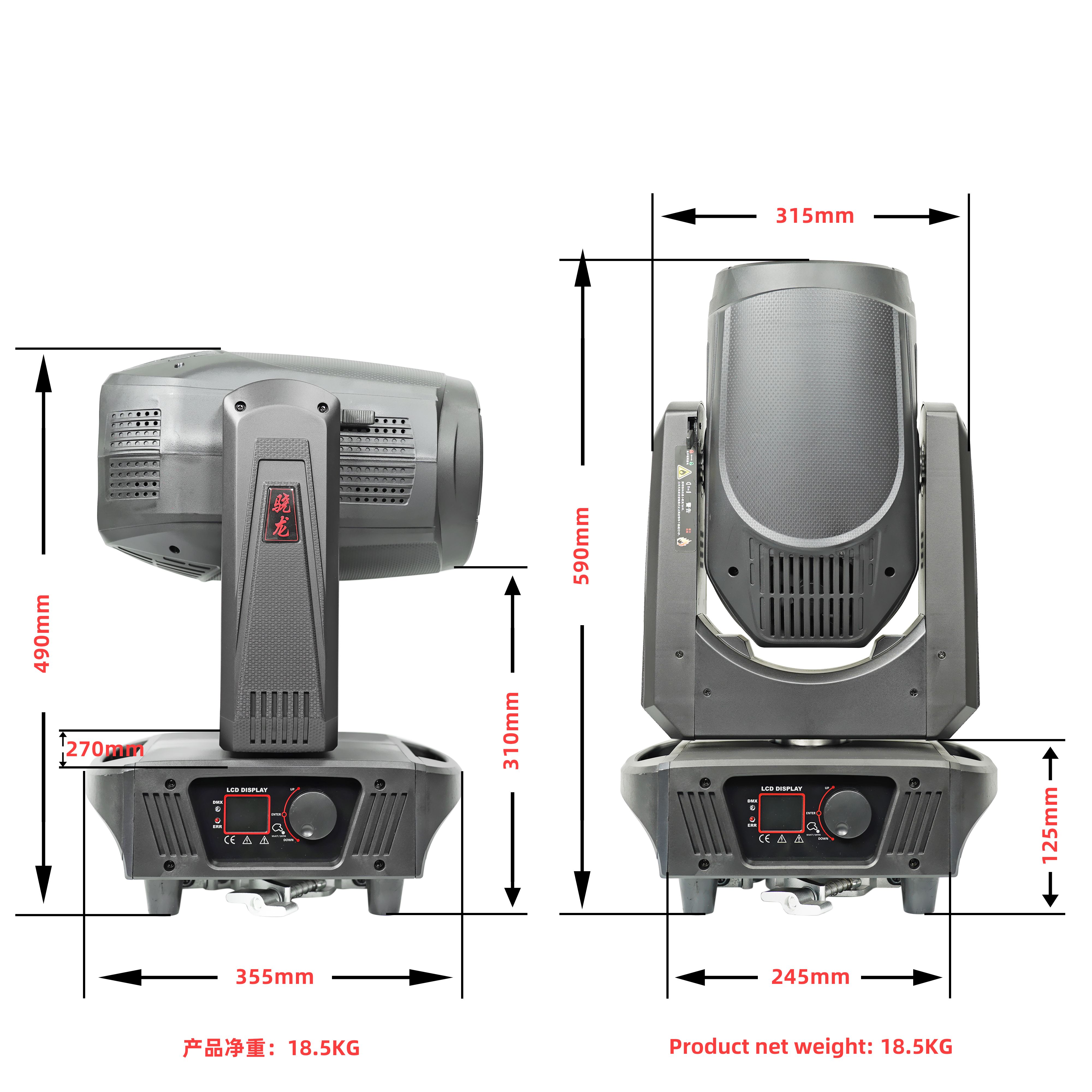

25.產品尺寸：(長35*寬27*高59)CM 產品凈重：18.5KG 紙箱包裝重:19.5KG
1、Ballast:Electric Ballast
2、Lamp life-span:2000Hrs
3、Lamp:380W
4、Color temperature:8000k
5、Color:13color+White,with half-color rainbow effect,and both direction rotated rainbow effect.
6、7colors rainbow effect:Independent Rainbow effect,clear&Flesh
7、Gobo:14pcs fixed gobo chip,with gobo shake effect,and gobo auto change effect.
8、Prism:2layer 4prism wheel:6linear prism,8prism 16prism and 8+8+8prism,the 2 different layer prism can overlay working,and can rotated at different direction.
9、Motor:High speed silence motor
10、Scattered heat fan Motor: with temperature sensor, the lamp temperature increases, the fan rotation speed operation! Conversely, slow down the operation!
11、Control motherboard: drive chip inlet, with lamp fault detection function, fan closed loop control, configuration RDM function!
12、Frost: independent frost effect, can also choose colorful prism effect.
13、Strobe:Strobe 0.3-1.3times/second.
14、Aperture: secondary beam adjustment
15、Display: 1.8-inch touch LCD display, can be inverted 180 display.
16、Lens: high precision large diameter combined optical lens, diameter 160CM, thick beam column, strong beam sense
17、Focus: 0-100% mechanical adjustment (support mechanical stroboscopic and adjustable stroboscopic effect, support stroboscopic macro function.）
18、Pan:540Degree,Tilt:270Degree（8Bit/16Bit）
19、Beam Angle: lens set optical system, electric focus, parallel beam Angle 0-2degree
20、Motors quantity: XY are silent motors, Total of 11 ultra silent motors,16 Bit drive adopts photoelectric reset system, which can automatically retrieve the reset.overheat protection.
21、Channel:16CH
22、Control mode:International Standard DMX control,Master&Slave.
Housing materials:Fire proof and high temperature resistant materials.
23、Other functions: remote control of the bulb switch function, display the use time of fixture and bulbs
24、Value of lamp on at with controller:200~205 Value of lamp off at with controller :100-105
Mechanical closed lamp automatically reduce 50% light source power
26、Product size: (long 35* width 27 * height 59) CM，Product Net Weight: 18.5KG, carton packaging weight: 19.5KG
